Image Edit

How to use Reshape feature?

Written guide 2 min read Beginner

The Reshape function allows you to reshape your images into a “square” (1x1 ratio), “rectangle” (2x3 or 3x4 ratio), or “landscape” (3:2 or 4:3 ratio). You can do this by following the steps below:

Reshape your images

  1. To get started, you can find the Reshape tool in the app’s tool menu (click Edit under the app in the Shopify sidebar, then Optimize → Reshape):

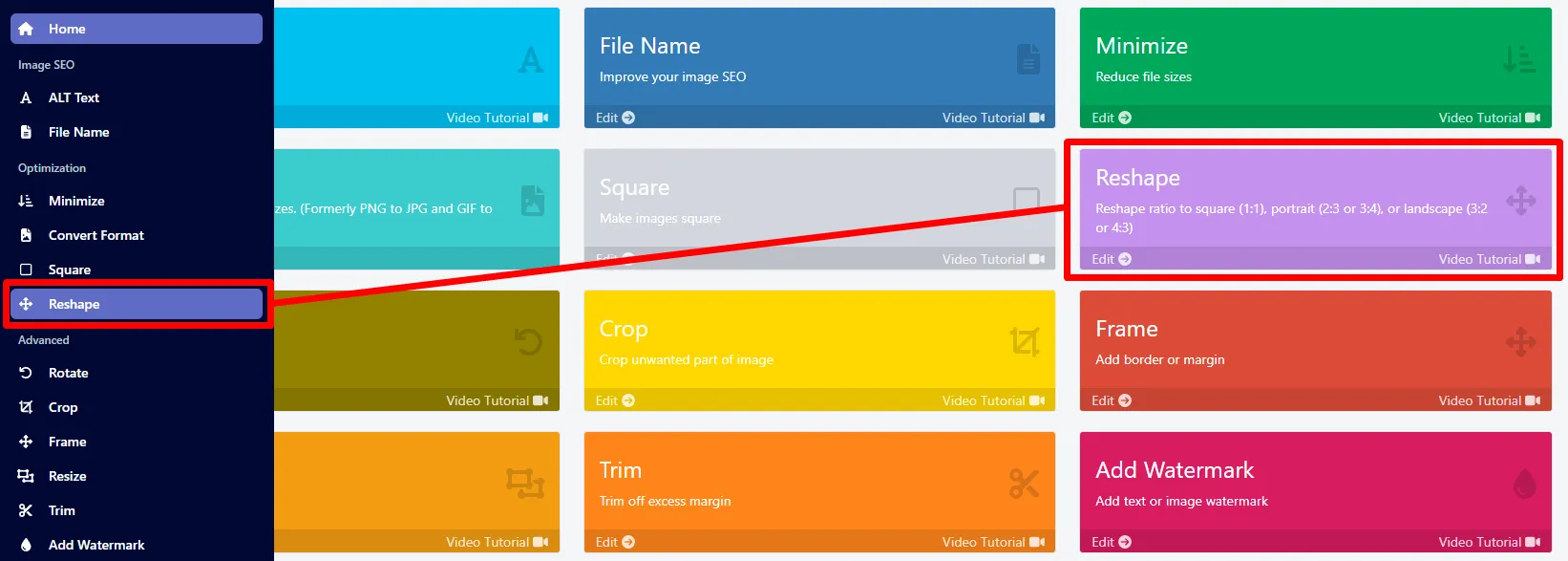

The app's tool menu with Reshape highlighted under Optimize
  1. On the Reshape page, you need to select first which type of images you want to edit. You can choose from “Product images” and “Content images”. For our example below, we will edit “Product images”.
Step 1, Select which type of images to edit, with Product images highlighted
  1. On the second step, you need to set your filters to find the images you want to edit. We will search for the product whose title is “Linen Midi Dress” in this case. You may click the “Preview matching images” button to have a preview of the products that meet your criteria.
Step 2, Set Conditions to filter products, set to product title is Linen Midi Dress, previewing three dress images that are all 1000 by 1500 pixels in 2:3 portrait
  1. Next, you need to select what type of edit you want for these images. You can choose 1:1 (square), 2:3 or 3:4 (portrait), and 3:2 or 4:3 (landscape). For our dress images, we will choose 1:1 Square in order to make them “square”.

Note: Our app will adjust product images differently depending on their background color:

  • Images with a solid white background: These will be expanded by adding white margins to match the selected ratio.
  • Images without a solid white background: These will be cropped to fit the selected ratio.
  • Images already matching the selected ratio: These will be skipped, as no adjustments are needed.
  1. After that, you can review everything and click on Start bulk editing to begin the image reshaping edit, and wait for the task to finish.

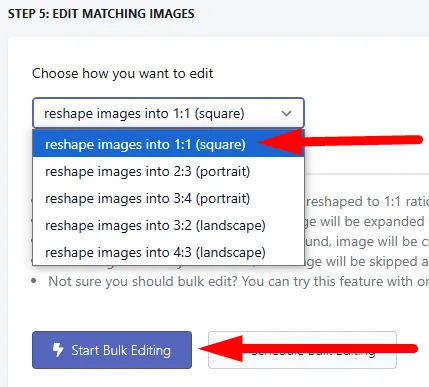

Step 4, Edit Matching Images, with 1:1 Square selected from the ratio choices and Start bulk editing highlighted

Check your results

Once the task is completely done, you can check the results on the Tasks page, and click the Details button of the task you ran.

A finished Reshape task on the Tasks page showing 3 images edited, with the Details button highlighted

How each image was adjusted

When you navigate to the Details page, you’ll be able to view the result of the task:

The blue dress before and after: expanded with white margins from 1000 by 1500 to 1500 by 1500 pixels

For the dresses from our example above, you can see that the blue dress is on a solid white background, so white margins were added to expand it from 1000x1500 to 1500x1500.

The coral dress before and after: cropped from 1000 by 1500 to 1000 by 1000 pixels

As for the coral dress, it’s not on a solid white background, so it was cropped from 1000x1500 to 1000x1000, making both dress pictures a “square” shape.

Feel free to contact us at help@hextom.com if you have any questions or need further assistance.
